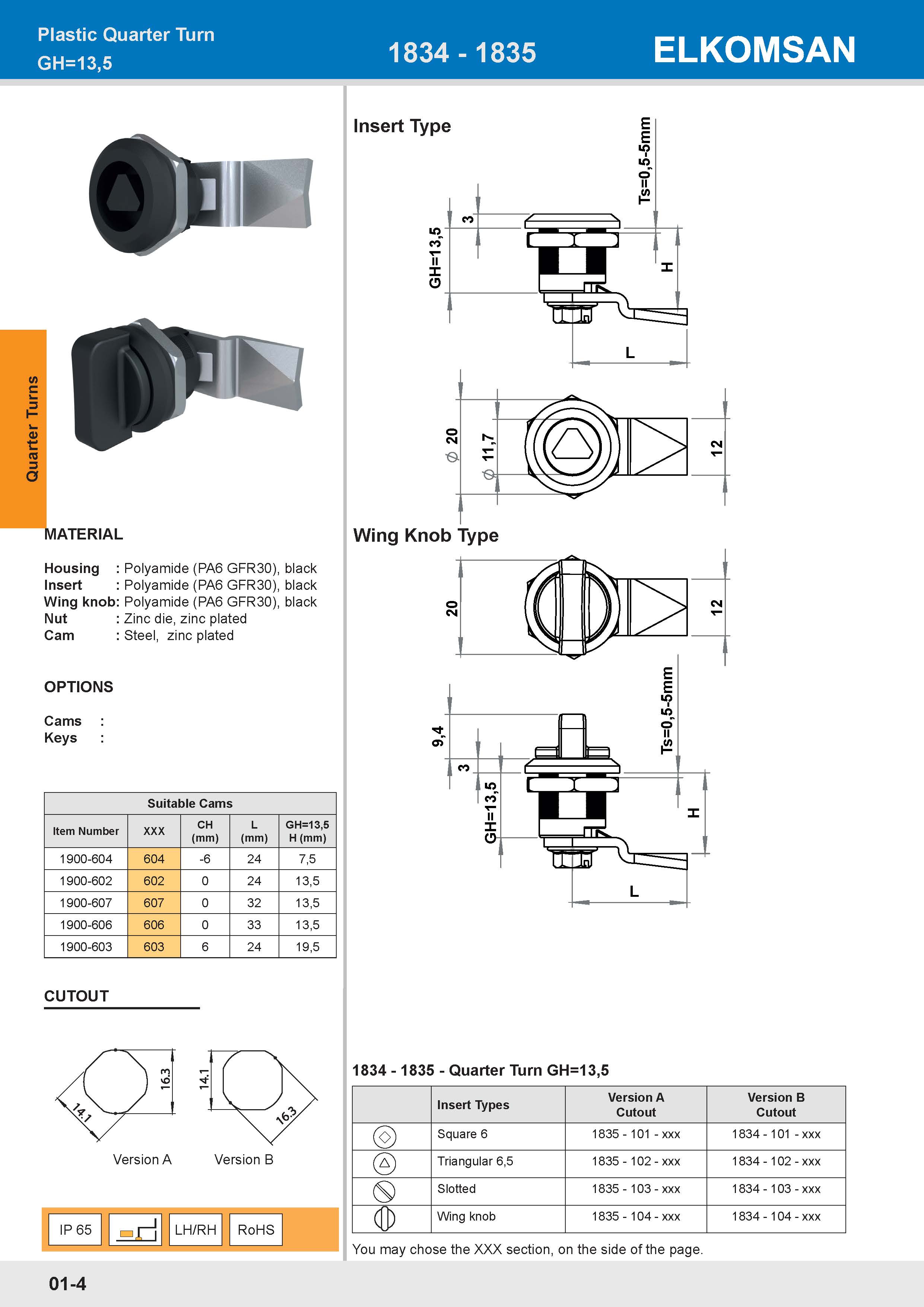

1835 Quarter Turn GH=13,5

1835 Quarter Turn GH=13,5

SKU: 1835

Material

Housing Polyamide (PA6 GFR30), black
Insert Polyamide (PA6 GFR30), black
Wing knob Polyamide (PA6 GFR30), black
Nut Zinc die, zinc plated
Cam Steel, zinc plated

Symbols

  • Inside Gasketing Applicaiton
  • IP 65 Compliant
  • Right/Left Hand Side
  • ROHS Compliant

1835 - Other Products in the Product Family

  • 1835-101-XXX
  • 1835-102-XXX
  • 1835-103-XXX
  • 1835-104-XXX

You may choose XXX section from cam tables. Click to here for page of cams.

Request!

  • Request 3D drawing!
  • Quote request!
  • Request sample!
